TUBELESS WHEEL RIM TECHNICAL PATAMETER
| Wheel Size | Bolt Hole（mm） | P.C.D | C.B.D | Offset | Tire Size | ||
| Number | Type | Dia | (mm) | (mm) | (mm) | ||
| 17.5×6.00 | 6 | 1x45° | Φ24 | Φ190 | Φ140 | 118 | 8R17.5 |
| 6 | 1x45° | Φ21.5 | Φ205 | Φ161 | 127 | 8R17.5 | |
| 6 | SR16 | Φ21.5 | Φ205 | Φ161 | 127 | 8R17.5 | |
| 6 | SR22 | Φ32 | Φ222.25 | Φ164 | 134 | 8R17.5 | |
| 6 | SR22 | Φ32.5 | Φ222.25 | Φ164 | 135 | 8R17.5 | |
| 6 | SR22 | Φ32 | Φ222.25 | Φ163 | 120 | 8R17.5 | |
| 10 | 1x45° | Φ26 | Φ225 | Φ176 | 134 | 8R17.5 | |
| 10 | SR22 | Φ32 | Φ225 | Φ176 | 133 | 8R17.5 | |
| 17.5×6.75 | 6 | 1x45° | Φ24 | Φ190 | Φ140 | 132 | 9R17.5 |
| 6 | 1x45° | Φ21 | Φ205 | Φ161 | 127 | 9R17.5 | |
| 6 | SR22 | Φ32.5 | Φ222.25 | Φ164 | 135 | 9R17.5 | |
| 6 | 1x45° | Φ24 | Φ222.25 | Φ164 | 142 | 9R17.5 | |
| 6 | SR16 | Φ21.5 | Φ205 | Φ161 | 140 | 9R17.5 | |
| 6 | SR18 | Φ27 | Φ225 | Φ176 | 145 | 9R17.5 | |
| 10 | 1x45° | Φ26 | Φ225 | Φ176 | 135 | 9R17.5 | |
| 8 | 1x45° | Φ26 | Φ275 | Φ221 | 142 | 9R17.5 | |
Strict Raw Material Inspection for Aluminum Wheel Rims
We adopt German-sourced spectral analyzers and tensile testing machines, paired with ultrasonic flaw detectors, to carry out comprehensive material testing and internal defect inspection. This rigorous procedure guarantees our raw aluminum bars are completely free from internal flaws, laying a solid foundation for high-quality aluminum wheel rims.
CUTTING PROCESS: KALOX Wheel adopts world-leading cutting technology to realize automated, high-precision cutting for our products. Outfitted with Germany-made Moessner automatic turning machines, we keep weight deviation and dimensional tolerance within ±0.1 kg, precisely matching the designed weight and dimensional requirements for aluminum wheel rims.

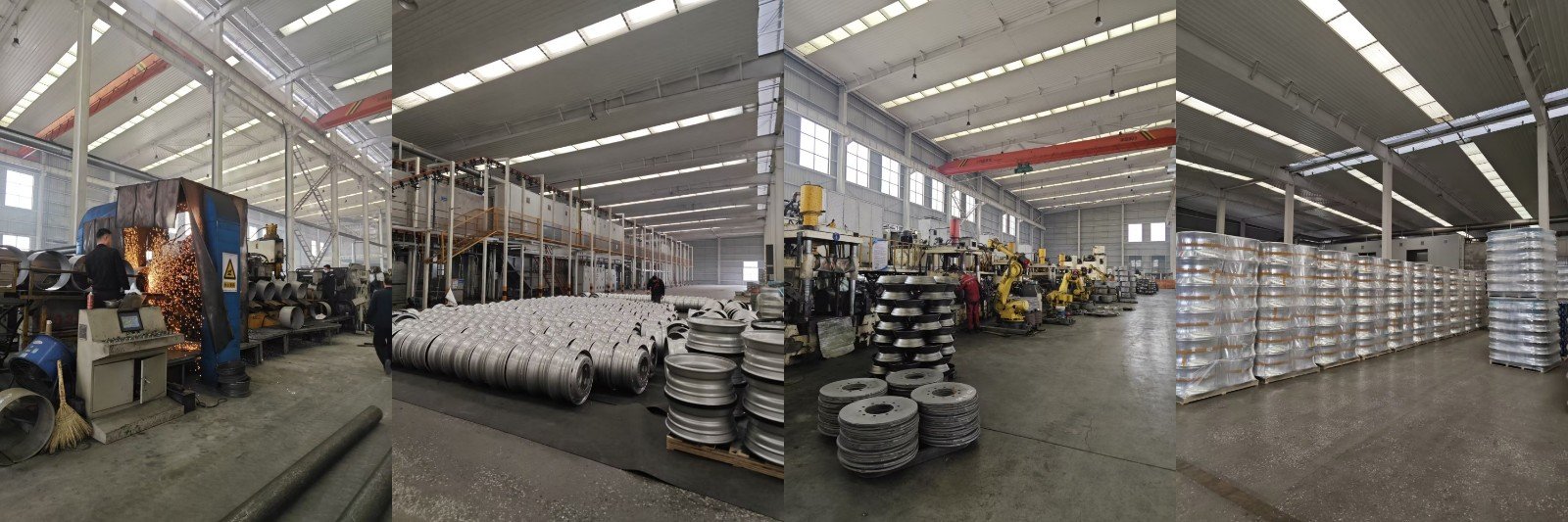

RIM PRODUCTION WORKSHOP
