How to Produce a Tyre

A high-performance tyre is far more than a simple rubber component. It is a precision-engineered product that integrates material science, mechanical manufacturing and strict quality management, directly determining vehicle safety, driving comfort and fuel efficiency. Every durable, reliable tyre rolling on the road undergoes a standardized, multi-stage manufacturing process. In this article, we take you through the complete professional tyre production workflow, showcasing the rigorous craftsmanship behind every finished tyre from raw material to final delivery.

1. Raw Material Selection & Compounding: Lay a Solid Foundation for Quality

The quality of a tyre starts with premium raw materials. Core production materials include natural rubber, synthetic rubber, carbon black, silica, steel wire, textile cords and professional chemical additives such as sulfur and accelerators. Different proportions of materials are scientifically formulated according to tyre types (passenger car, truck, off-road, etc.) and usage scenarios to balance wear resistance, grip, elasticity and durability.

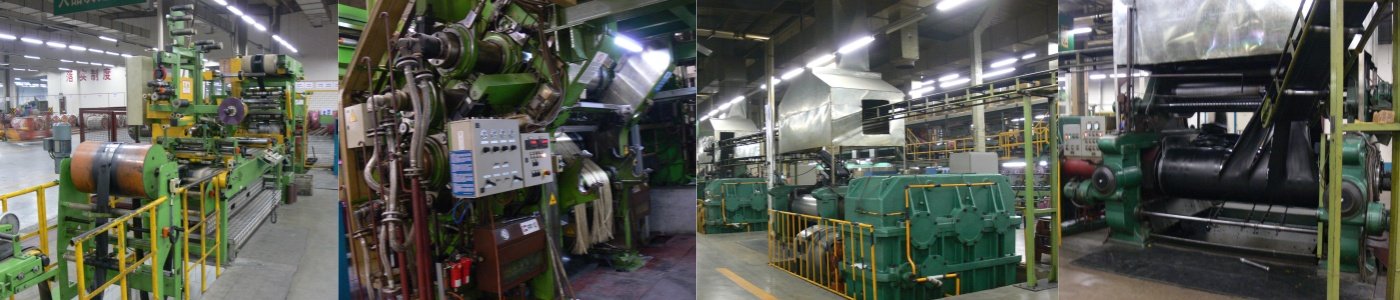

The first core production procedure is rubber compounding. In a closed mixing system, raw rubber is fully blended with fillers, anti-aging agents and curing agents under precise temperature and pressure control. This process ensures uniform material properties, enhances rubber toughness and anti-aging performance, and lays a foundational guarantee for the overall stability of finished tyres. After mixing, the rubber compound is cooled, sliced and stored for subsequent processing.

2. Component Preparation: Precision Processing of All Tyre Parts

A complete tyre consists of multiple independent functional components, all of which need professional precision processing before assembly. This stage covers the core parts that support the tyre’s structural strength and driving performance.

Inner Liner: Made of airtight special rubber, it is processed into uniform sheets to ensure zero air leakage and maintain tyre inflation stability for a long time.

Body Plies & Textile Reinforcements: Polyester and nylon textile cords are coated with high-viscosity rubber and cut into standard sizes at fixed angles. These layered structures form the main carcass of the tyre, bearing the main load and buffering road impact.

Bead Cores: High-strength plated steel wires are rubber-coated, wound and fixed into standard bead rings. As the key part connecting the tyre and the rim, bead cores ensure firm assembly and prevent tyre detachment during high-speed driving and heavy-load operation.

Belts & Tread: Steel belt layers are processed with high precision to strengthen tyre structural stability and resist deformation. The tread rubber is separately processed with customized formulas to adapt to different road conditions, ensuring excellent grip and wear resistance.

3. Tyre Building: Assembly of the Green Tyre

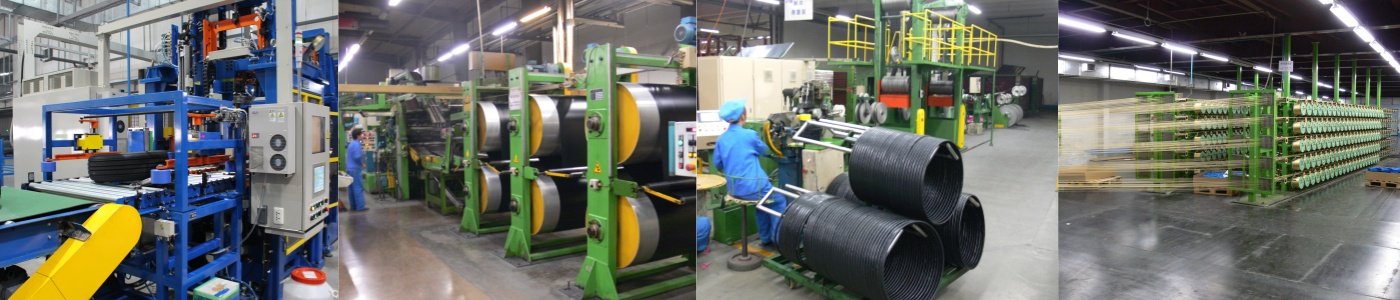

Tyre building is the core assembly stage of the entire production process, transforming scattered components into an integrated unvulcanized “green tyre”. Modern factories adopt advanced automated tyre building machines to achieve standardized and efficient assembly.

The assembly follows a strict sequential order: the airtight inner liner is first laid on the building drum, followed by the laminated body plies and sidewall rubber. After the bead cores are fixed in place, the ply edges are tightly wrapped around the bead rings to lock the basic structure. Subsequently, high-strength steel belts and the pre-processed tread rubber are accurately attached to the outer layer. After overall fitting and inflation shaping, the semi-finished green tyre with a complete structure is completed.

Different from traditional manual processes, our automated building technology effectively avoids splicing errors and component deviation, ensuring consistent structural accuracy of each tyre and laying a key foundation for subsequent curing and final performance.

4. Curing & Vulcanization: Finalize Tyre Performance & Appearance

Curing (vulcanization) is the most critical procedure to determine tyre physical performance, marking the transformation from soft, moldable green tyre to hard, durable finished tyre. The whole process relies on professional curing presses and customized precision molds.

The green tyre is accurately placed into a patterned mold engraved with exclusive tread patterns and sidewall marking information. Under strictly controlled constant temperature, high pressure and fixed time, the sulfur-based curing system triggers a cross-linking reaction of rubber polymer chains. This chemical reaction greatly improves the rubber’s elasticity, hardness, wear resistance and thermal stability, and permanently sets the tyre’s tread texture, sidewall specifications and overall shape.

Precise control of curing parameters is essential: slight deviations in temperature, pressure or time will directly affect tyre stiffness, driving stability and service life. We adopt intelligent parameter monitoring systems to ensure every tyre completes vulcanization in the optimal state.

5. Strict Quality Inspection & Testing

Quality control runs through every link of tyre production, from raw material incoming inspection to finished tyre delivery. After curing and cooling, all finished tyres will undergo a full range of rigorous inspections to eliminate defective products completely.

Visual Inspection: Professional inspectors and intelligent equipment jointly check the tyre surface for bubbles, cracks, uneven rubber and pattern defects.

Internal Detection: X-ray inspection is used to detect hidden internal problems such as ply dislocation, steel wire breakage and internal gaps that cannot be observed by naked eyes.

Performance Testing: Professional equipment conducts tyre uniformity detection, dynamic balance testing and structural stability verification to ensure the tyre meets international safety and performance standards.

Only tyres that pass all inspection items can be graded, packaged and sent to the warehouse for global delivery.

6. Conclusion: Craftsmanship Behind Every Reliable Tyre

Tyre production is a rigorous and sophisticated systematic project, integrating raw material optimization, precision processing, automated assembly, scientific vulcanization and full-process quality control. Every production link determines the safety, comfort and durability of the final product.

Adhering to strict production standards and advanced manufacturing technology, we focus on optimizing every production detail. From material selection to finished products, we always take quality as the core, committed to providing global customers with high-quality, high-performance and ultra-reliable tyre products.
